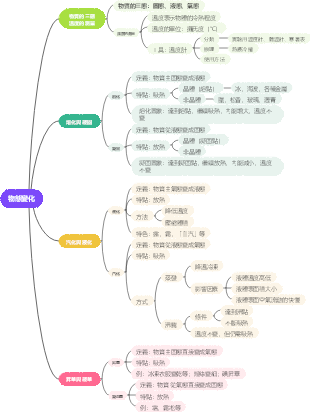

物理物態變化
溫度
概念
物理學中通常用溫度來表示物體的冷熱程度
溫度計
液體溫度計是根據物體的冷熱程度來製作的
標準大氣壓力下冰水混合物的溫度為攝氏0度,沸水的溫度為攝氏100度
體溫計的量程是攝氏35度到42度
溫度計的使用
指針是寒暑表的原理,是固體的熱脹冷縮
一看清測量範圍,二看清溫度計的分度值
一玻璃泡全部進入被測液體中,不要碰到容器底或容器壁。二待溫度計的示數穩定後再讀數。三視線要與溫度計中的液面相平
融化
概念
由固體變成液體的過程
實驗(研究海波和石蠟的熔化變化規律)
實驗裝置由下而上,水浴加熱的原因是方便觀察海波和石蠟的融化過程
海波在融化中溫度保持不變,即海波是晶體
石蠟是非晶體
子主題
熔點
晶體熔化時的溫度稱為熔點,而非晶體沒有固定的熔化溫度
熔化吸熱
凝固
概念
由液態變成固態的過程
凝固點
同一物質的凝固點和它的熔點相同
液體凝固形成晶體時的固定溫度,稱為凝固點
凝固放熱
汽化
氣化現象吸熱
概念
物質從液態變成氣態的過程
沸騰:沸騰是液體內部和表面同時發生的劇烈氣化現象
實驗:水在沸騰後,溫度不持續升高
蒸發:在任何溫度下都能發生的氣態變化,蒸發只發生在物體表面
加速蒸發的方法:一升高物體的溫度;二:增加液體的表面積;三:加速液體表面上空氣的流動
蒸發與沸騰的相同點:都是氣化現象, ;不同點:蒸發是在物體表面,而沸騰是在內部和表面;沸騰需要達到沸點,而蒸發在任何溫度下都能發生
汽化吸熱
液化
概念
物質由氣態變成液態的過程
白氣是呼出的水蒸氣遇到冷空氣凝結成的小水珠;例如露珠,白霧
液化方法:一降低溫度;二壓縮體積
液化放熱
昇華和凝華
物質從固態直接變成液態的過程叫做昇華;物質從氣態直接變成固態的過程叫做凝華
霜,雪,冰花,霧凇等都是凝華現象,樟腦片;冬天結冰的衣服慢慢變乾,是昇華現象
冰花是在窗內
昇華吸熱,凝華放熱
