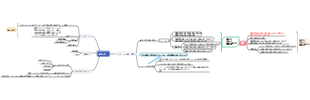

マインドマップギャラリー 動きと力
中学校の物理、運動と力の第 8 章のマインド マップ。探索実験、ニュートンの第一法則、 2つの力のバランス、 摩擦など
2024-01-26 11:45:35 に編集されましたThis infographic, created using EdrawMax, outlines the pivotal moments in African American history from 1619 to the present. It highlights significant events such as emancipation, key civil rights legislation, and notable achievements that have shaped the social and political landscape. The timeline serves as a visual representation of the struggle for equality and justice, emphasizing the resilience and contributions of African Americans throughout history.
This infographic, designed with EdrawMax, presents a detailed timeline of the evolution of voting rights and citizenship in the U.S. from 1870 to the present. It highlights key legislative milestones, court decisions, and societal changes that have expanded or challenged voting access. The timeline underscores the ongoing struggle for equality and the continuous efforts to secure voting rights for all citizens, reflecting the dynamic nature of democracy in America.
This infographic, created using EdrawMax, highlights the rich cultural heritage and outstanding contributions of African Americans. It covers key areas such as STEM innovations, literature and thought, global influence of music and arts, and historical preservation. The document showcases influential figures and institutions that have played pivotal roles in shaping science, medicine, literature, and public memory, underscoring the integral role of African American contributions to society.
This infographic, created using EdrawMax, outlines the pivotal moments in African American history from 1619 to the present. It highlights significant events such as emancipation, key civil rights legislation, and notable achievements that have shaped the social and political landscape. The timeline serves as a visual representation of the struggle for equality and justice, emphasizing the resilience and contributions of African Americans throughout history.
This infographic, designed with EdrawMax, presents a detailed timeline of the evolution of voting rights and citizenship in the U.S. from 1870 to the present. It highlights key legislative milestones, court decisions, and societal changes that have expanded or challenged voting access. The timeline underscores the ongoing struggle for equality and the continuous efforts to secure voting rights for all citizens, reflecting the dynamic nature of democracy in America.
This infographic, created using EdrawMax, highlights the rich cultural heritage and outstanding contributions of African Americans. It covers key areas such as STEM innovations, literature and thought, global influence of music and arts, and historical preservation. The document showcases influential figures and institutions that have played pivotal roles in shaping science, medicine, literature, and public memory, underscoring the integral role of African American contributions to society.
動きと力
ニュートンの第一法則
物体に対する抵抗の影響を調べる
①同じ高さ、同じ材質の坂道を車で滑り降りさせます。
② 異なる材質の平らな面(木の板と綿の布など)を使用して、車の滑り長さを比較します。
③動いている物体が止まるのは、材質が異なれば抵抗が異なるためです。
物体の運動を維持するために力は必要ありません
ニュートンの第一法則
内容: 力が作用しないとき、すべての物体は常に静止しているか、等速度で直線運動します。
多数の経験的事実に基づき、さらに合理的な推論を通じて一般化
慣性
すべての物体には、元の運動状態を維持する特性があります。物理学では、この物体の特性を慣性と呼びます。
理解する
すべてのオブジェクトには常に慣性があり、慣性はオブジェクトの特性です。
品質だけについて
慣性には大きさのみがあり、方向はありません
慣性の利用と防止
使用
アプローチ
ハンマーハンドルの下側を叩いてハンマーヘッドを締めます
予防措置
ブレーキシステム
エアバッグ
2 つの力の平衡
バランス力
物体が複数の力を受けたとき、物体が静止しているか、等速度で直線運動している場合、これらの力は互いに釣り合います。
平衡状態:静止しているか、等速で直線運動している状態
2つの力が釣り合う条件
2つの力のバランスの条件を探る
① 車を滑らかな水平面に置き、静止させてください。
②台車の両側に吊り下げたパレットにおもりを載せます
③両側に不等な重みを加えて現象を観察する
④同じ質量の重りを両側に付けて現象を観察します。
大きさが等しく、方向が逆で、同じ物体に作用し、同じ直線に作用する
応用
スカイダイバーは一定の速度で落下するために重力と抵抗を等しく保つ必要があります
オブジェクトの運動状態を決定する
摩擦力
意味
滑り摩擦:接触している2つの物体が相対的に滑り合うとき、接触面に発生して相対的な動きを妨げる力。
方向
オブジェクトの接触面に平行で、オブジェクトの相対運動 (トレンド) の方向と反対
生産条件
2 つの物体が互いに接触しており、圧力がかかっています
粗い接触面
2 つのオブジェクト間に相対運動または相対運動の傾向がある
影響を与える要因
滑り摩擦の影響要因を調べる
① 実験装置を準備します。① ② それらを木の板の上に置きます。 ③ それらをサンドペーパーの上に置きます。 ② その上に同じ 3 つのバネ力計を置きます。
①②:接触面の圧力が大きくなるほど滑り摩擦が大きくなります。
①③:接触面の粗さが大きいほど滑り摩擦が大きくなります。
摩擦の利用と防止
使用
ランニング シューズの靴底とタイヤのパターンにより、地面との摩擦が増加します。
懸垂や体操の前に手に滑り止めパウダーを塗布します。
防ぐ
機械が作動すると、可動部品の摩擦により磨耗が発生します。摩擦を軽減するように努めてください。
カーリング中に氷を掃いて氷の表面の荒れを軽減します。
