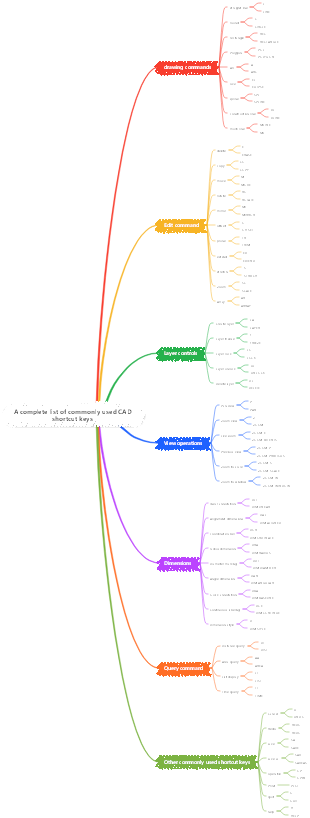

Organizing common CAD shortcut keys
Create graphics
L
Line (space, enter, ESC can exit drawing)
PL
polyline
C
round
PPl
spline
EL
oval
REC
rectangle
Arc
Arc
MT
multiline text
GRA
Fill gradient color
E
Erase wireframe
B/i
Create block/Insert block
Edit graphics
After selecting a point on the line, pressing the space button multiple times will switch to the following functions: move, rotate, and zoom.
M
move
F
Rounded corners connect two line segments. When clicking on the first item, you can enter r to set the radius of the connected fillet. After the fillet is generated, the radius can still be edited and adjusted.
tr
prune
AA
Measure area
O
offset copy
X
Decompose and explode
MA
Format Painter
J
merge
co
copy copy
mark
Dim
Create multiple types of dimensions
QDIM
Quick Dimension: Quick Dimension
DLi
Linear
DAL
Alignment
DDI
diameter
DLA
radius
DAN
angle
D. Set the standard style of the label line
show
interface
Ctrl 1
Call up the graphics parameter panel
Ctrl 3
Bring up toolbar
Ctrl 9
command bar
F7
Grid display
F8
orthogonal mode
Double-click the mouse wheel to maximize the image
LT
Line type
Function
Tab F12
Dynamic input can be turned on and off. After turning on dynamic input, press tab to switch input attributes and write values. Space is used to complete.
F3
Switch object snapping
W
Define block export
LA
layer manager
Un
Set scene units and the number of digits to draw values
size words
unitless【无unit】
inches【inch】
feet【feet】
mile【mile】
meters【meter】
